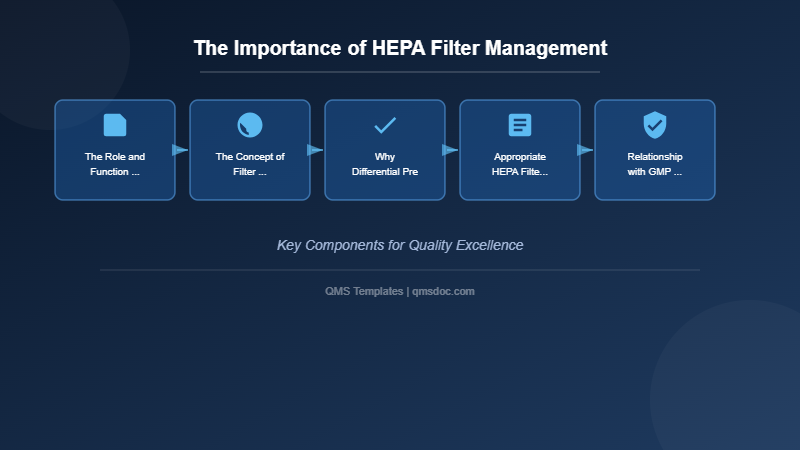

The Importance of HEPA Filter Management

In pharmaceutical manufacturing, environmental control in cleanrooms is a critical element that directly impacts product quality. In particular, HEPA (High Efficiency Particulate Air) filters incorporated into air conditioning systems serve as the cornerstone equipment for capturing particulates and microorganisms in the air taken from outside, maintaining the cleanliness level within cleanrooms.

The Role and Function of HEPA Filters

HEPA filters are high-performance filters that typically capture 99.97% or more of particles as small as 0.3 μm. In pharmaceutical manufacturing environments, this high collection efficiency plays a crucial role in maintaining the particle count within cleanrooms below specified limits and preventing microbial contamination of products.

It should be noted that while 0.3 μm is often cited as the standard test particle size, HEPA filters are actually more efficient at capturing both larger and smaller particles. The 0.3 μm size represents the Most Penetrating Particle Size (MPPS), which is the most difficult particle size to capture due to the physics of filtration mechanisms.

The Concept of Filter Replacement Based on Differential Pressure Management

At certain pharmaceutical companies, “differential pressure” is used as an indicator to determine when to replace HEPA filters. By measuring the pressure difference between the upstream and downstream sides of the filter, the clogging status of the filter can be assessed.

When differential pressure increases, it indicates that the filter is capturing particulates and becoming clogged. Conversely, when differential pressure decreases from the initial value, this suggests the possibility of deterioration or damage to the filter material. For this reason, many manufacturing facilities use a decrease in differential pressure as a criterion for HEPA filter replacement.

However, it is important to note that an increase in differential pressure beyond recommended limits can also be a replacement criterion, as excessive pressure drop can reduce airflow efficiency and increase energy consumption in the HVAC system.

Why Differential Pressure Management Alone is Insufficient

Nevertheless, relying solely on differential pressure management to determine filter replacement has a significant blind spot. Even without physical damage, HEPA filters can become progressively contaminated with microorganisms over time. Particularly in high-humidity environments or when there are no appropriate pre-treatment filters upstream of the air conditioning system, the HEPA filter itself poses a risk of becoming a microbial “reservoir.”

In other words, even when no abnormality is observed in differential pressure values, microorganisms may be proliferating inside the filter, which can become a source of microbial contamination within the cleanroom.

Furthermore, filters can develop pinhole leaks or seal failures that do not significantly affect differential pressure readings but compromise the integrity of the filtration system. These types of failures can only be detected through integrity testing, not through differential pressure monitoring alone.

Appropriate HEPA Filter Management Practices

Proper management of HEPA filters should consider the following points:

Establishment of Regular Replacement Plans: Regardless of differential pressure value fluctuations, establish periodic replacement cycles that consider the operating environment and manufacturing risks. Industry practice typically suggests replacement intervals ranging from 2 to 5 years for pharmaceutical applications, though this should be based on risk assessment and validation data.

Application of Risk-Based Approach: Determine filter replacement frequency through comprehensive evaluation of the characteristics of manufactured products, cleanroom applications, environmental monitoring results, and historical performance data. Higher-risk applications, such as aseptic processing of sterile products, may warrant more frequent replacement and monitoring.

Integration with Environmental Monitoring: When abnormalities are observed in microbial monitoring results within the cleanroom, suspect HEPA filter contamination and consider replacement as necessary. Trending of environmental monitoring data can provide early warning signs of filter performance degradation.

Implementation of Validation: Conduct integrity tests and particle collection efficiency tests to confirm that new or replaced HEPA filters are functioning properly. Common integrity test methods include the DOP (Dioctyl Phthalate) test, PAO (Poly Alpha Olefin) aerosol test, or increasingly, the more environmentally friendly cold-generated thermal aerosol test. These tests should be performed after installation and periodically thereafter.

Pre-filter Maintenance: Ensure proper maintenance of pre-filters upstream of HEPA filters to extend HEPA filter life and reduce the bioburden challenge to the final filter stage.

Documentation and Trending: Maintain comprehensive records of differential pressure readings, filter replacement dates, integrity test results, and any deviations. Analyze trends to optimize replacement schedules and predict potential failures.

Relationship with GMP Requirements

In pharmaceutical GMP, environmental control of cleanrooms is an essential element, and qualification and periodic re-qualification of air conditioning systems are required. EU GMP Annex 1 (Manufacture of Sterile Medicinal Products), which underwent a major revision with implementation in August 2023, clearly requires periodic revalidation of HEPA filters and the development of replacement plans based on risk assessment.

Specifically, Annex 1 emphasizes that:

• HEPA filters should be integrity tested after installation and at regular intervals thereafter
• A risk-based approach should be used to determine the frequency of filter testing and replacement
• Filter housing systems should be designed to allow for safe filter replacement and leak testing
• Filter integrity testing should be performed under operational conditions where possible

The Japanese “Guideline on the Manufacture of Sterile Drug Products by Aseptic Processing” also requires appropriate maintenance management and periodic performance confirmation of air conditioning systems, including HEPA filters. This guideline aligns with international standards set by ICH (International Council for Harmonisation) and emphasizes the importance of continuous monitoring and qualification.

The United States FDA’s guidance documents, including the “Sterile Drug Products Produced by Aseptic Processing — Current Good Manufacturing Practice,” similarly stress the importance of maintaining the integrity of air filtration systems and implementing comprehensive monitoring programs.

International Standards and Industry Best Practices

Several international standards provide guidance on HEPA filter management in pharmaceutical manufacturing:

ISO 14644 Series: This series of standards on cleanrooms and associated controlled environments provides specifications for testing and monitoring to prove continued compliance with cleanliness classification. Part 3 specifically addresses test methods, including filter leak testing.

ISO 14698: This standard focuses on biocontamination control and provides methods for evaluating and monitoring the microbiological cleanliness of cleanrooms.

PDA Technical Reports: The Parenteral Drug Association (PDA) has published technical reports such as TR 13 on “Fundamentals of an Environmental Monitoring Program” that provide practical guidance on filter management and environmental control.

Industry best practices increasingly emphasize the concept of Quality by Design (QbD) in cleanroom operations, where HEPA filter management is integrated into a comprehensive contamination control strategy that considers all potential contamination routes and implements appropriate controls.

Summary

In HEPA filter management, a comprehensive approach that considers not only physical condition monitoring through differential pressure surveillance but also the risk of microbial contamination is necessary. The thinking that “there is no problem because differential pressure is normal” is insufficient as quality assurance for cleanroom environments. It is essential to combine periodic replacement plans with risk-based management methods.

Quality departments and facilities management departments at pharmaceutical companies should re-recognize the importance of HEPA filter management and establish appropriate filter replacement strategies to ensure product quality and patient safety. This includes:

• Moving beyond differential pressure as the sole monitoring parameter
• Implementing regular integrity testing based on risk assessment
• Establishing scientifically justified replacement schedules
• Maintaining comprehensive documentation and trending programs
• Staying current with evolving regulatory expectations and industry best practices

By adopting a holistic, risk-based approach to HEPA filter management, pharmaceutical manufacturers can better ensure the integrity of their cleanroom environments and, ultimately, the safety and efficacy of the medicines they produce for patients worldwide.
